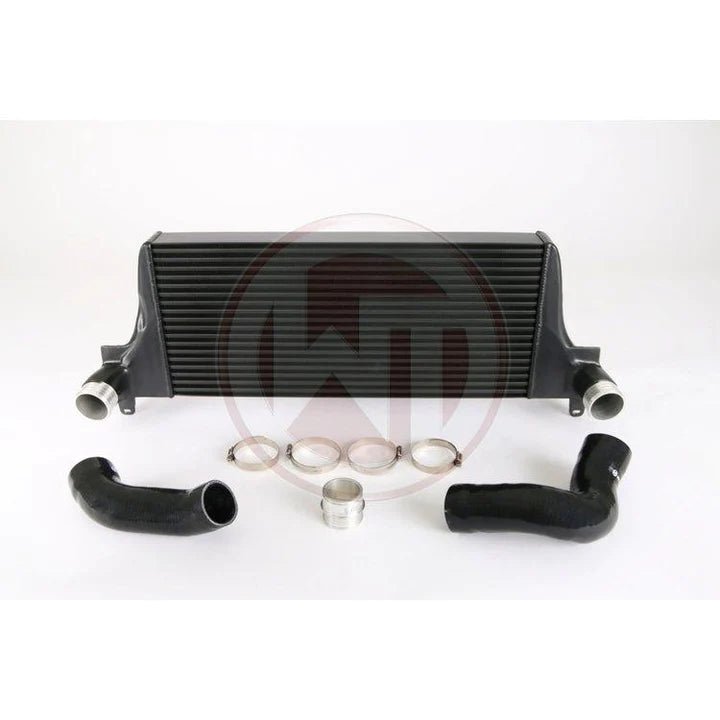

The competition intercooler has the following core size (670mm x 302mm x 75mm = 15.175cm³), providing a 40% larger frontal cooling surface and 229% more volume compared to the stock mounted intercooler.
Our engineers have increased the intercooler core size and efficiency, as well as improved the end tank design to remove any OEM bottlenecks, resulting in increased flow rating and charge cooling properties.
The new developed Competition intercooler core supports a very high ratio of airflow and is also very light. The weight of the complete intercooler is only 8,9kg. The endtanks are made ??of cast aluminum and have been optimized under flow analyzes in the CFD system. With the help of additional air guides, inside the inlet, an uniform filling of the intercooler is provided. The stock click connections have been eleminated and increased to a connection diameter of Ø65mm for in- and outlet.
Dimensions stock Intercooler.
V = 4.6L
A = 1440cm²
Dimensions Wagner Tuning Intercooler:
V = 15.2L
A = 2023cm²
This Intercooler Kit Suits:
Volkswagen T5.1 2,5TDI 96KW/131PS 2003-2009*
Volkswagen T5.1 2,5TDI 128KW/174PS 2003-2009*
* Cars with engine code: AXB, AXC, AXD, AXE, BLJ, BRR, BRS need to change the charge air pipe to 7H0145955L.
PLEASE NOTE : ALL PRICING IS BASED ON LOCAL STOCK AVAILABLE IN AUSTRALIA. IF ITEMS NEED TO BE FREIGHTED URGENTLY FROM GERMANY - ADDITIONAL FREIGHT CHARGES WILL APPLY
