Racingline Stage 3 Forged Monoblock Full Brake Assembly Kit 380mm [VWR650003]
Racingline Stage 3 Forged Monoblock Full Brake Assembly Kit 380mm [VWR650003]
Racingline Stage 3 Forged Monoblock Full Brake Assembly Kit 380mm [VWR650003]
Racingline Stage 3 Forged Monoblock Full Brake Assembly Kit 380mm [VWR650003]
Racingline Stage 3 Forged Monoblock Full Brake Assembly Kit 380mm [VWR650003]
Racingline Stage 3 Forged Monoblock Full Brake Assembly Kit 380mm [VWR650003]
Racingline Stage 3 Forged Monoblock Full Brake Assembly Kit 380mm [VWR650003]
Racingline Stage 3 Forged Monoblock Full Brake Assembly Kit 380mm [VWR650003]
Racingline Stage 3 Forged Monoblock Full Brake Assembly Kit 380mm [VWR650003]
Racingline Stage 3 Forged Monoblock Full Brake Assembly Kit 380mm [VWR650003]
Racingline Stage 3 Forged Monoblock Full Brake Assembly Kit 380mm [VWR650003]
Racingline Stage 3 Forged Monoblock Full Brake Assembly Kit 380mm [VWR650003]
Racingline Stage 3 Forged Monoblock Full Brake Assembly Kit 380mm [VWR650003]

Racingline Stage 3 Forged Monoblock Full Brake Assembly Kit 380mm [VWR650003]

$6,299.00

WHAT’S IN THE KIT?

  • Monoblock Brake Caliper pair
  • Caliper Mounting Bracket pair
  • Full bolt mounting kit
  • Braided Steel Brake Line Set
  • Sport Brake Pad Set
  • Triple Groove 2-piece brake disc pair

WHY UPGRADE?

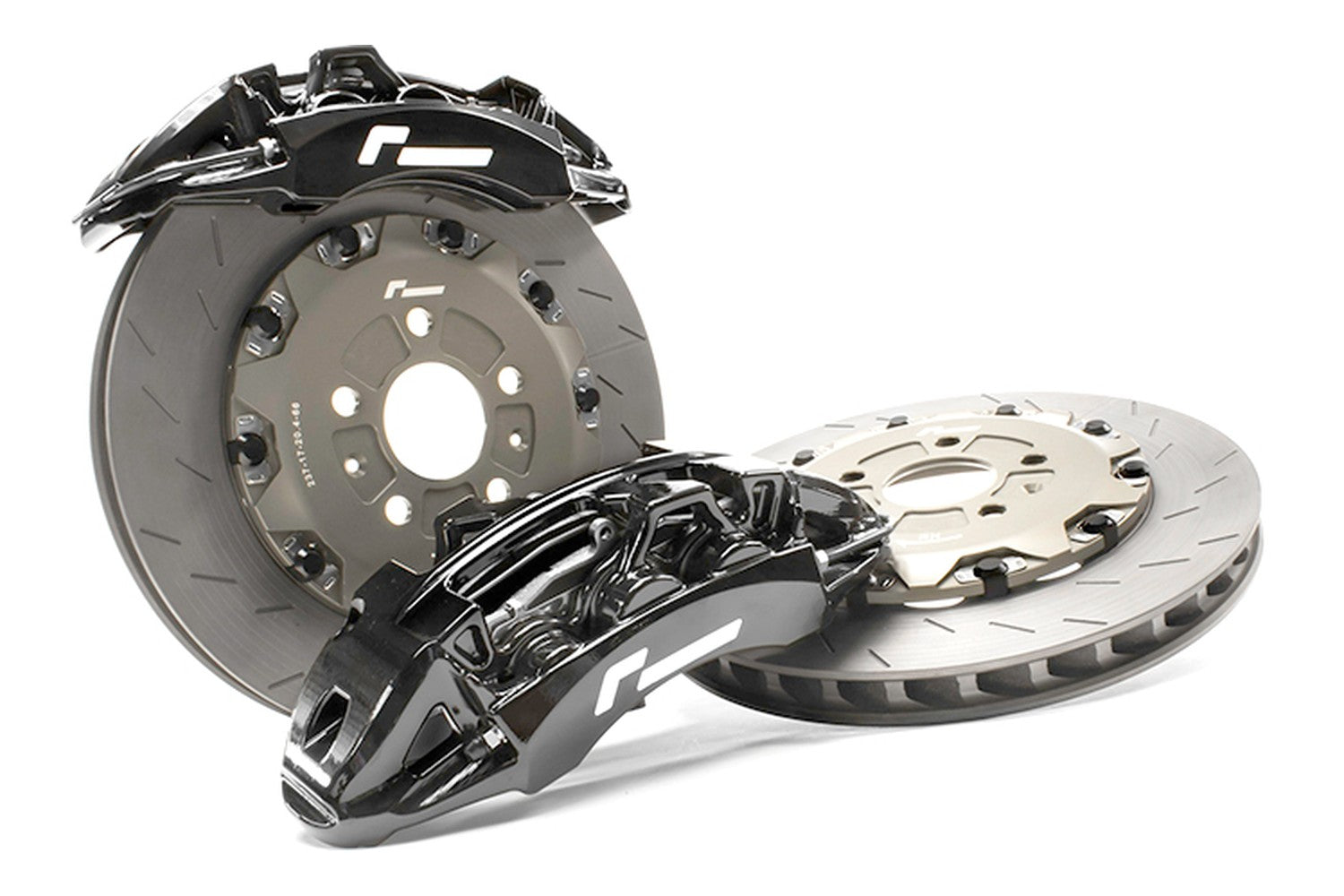

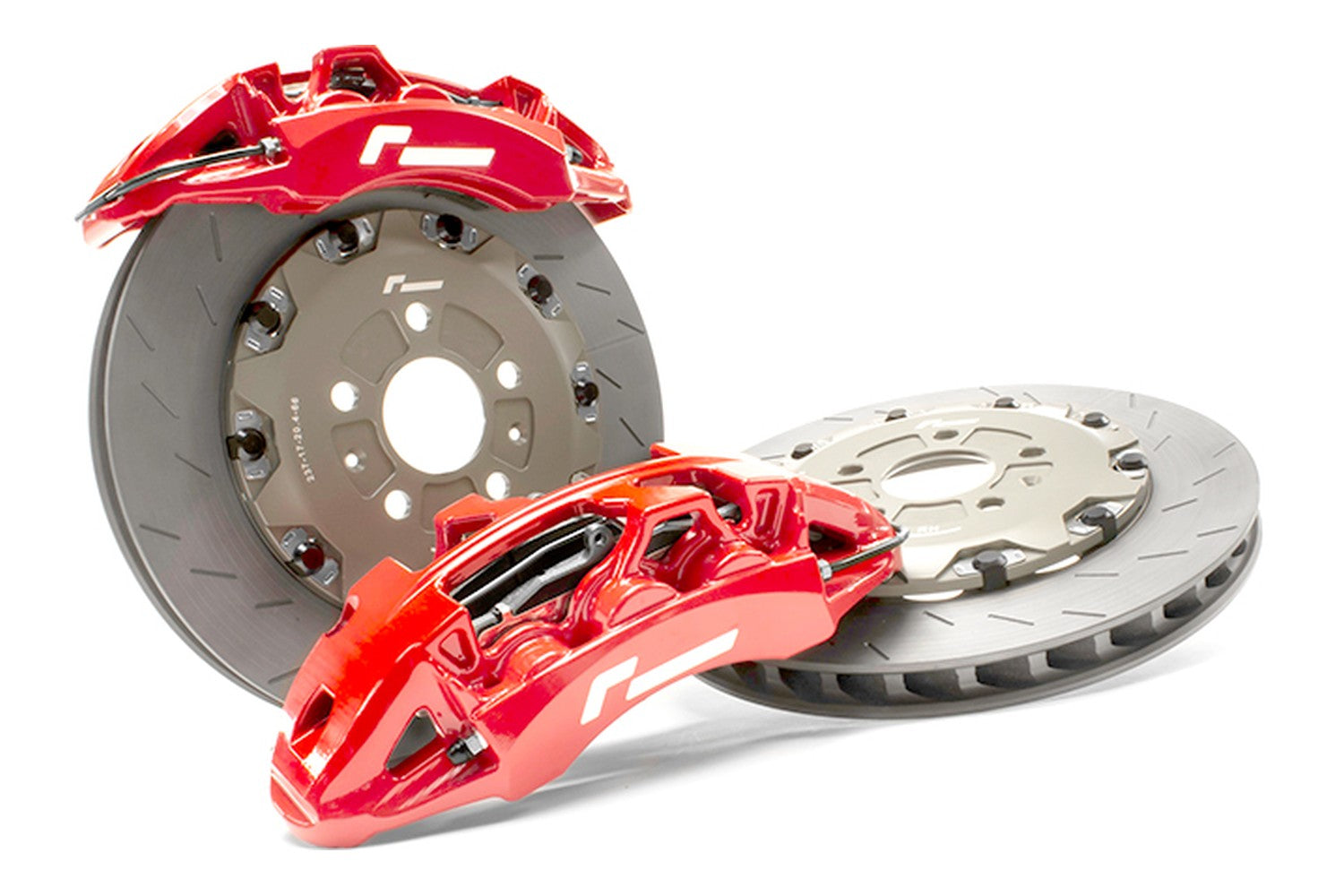

The RacingLine Stage 3 Forged Monoblock Brake Kit moves braking technology to a level above anything seen before in this market.

Our design vision was made possible by our advanced 5-axis CNC manufacturing techniques to give this kit more in common with top-level motorsport components than typical aftermarket parts. The result is a combination of ultimate track performance with lightness, stiffness and beautiful attention to detail.

Each lightweight Forged Monoblock caliper is a one-piece construction that starts out from an ultra-strong forged billet. Rather than two halves bolted together, our design takes a complex 5-axis CNC machining procedure to build, usually reserved only for the highest-specification motorsport kits.

The result is a 6-piston caliper that is both stiffer and lighter than any other, combined with exceptional cooling characteristics and stunning detailing.

Despite the size of these calipers, they weigh in significantly under the mass of the factory ones. The caliper, pads and bracket assembly together weigh 5.3kg (11.7lb) vs 8.6kg (18.9lb) for the factory Golf 7R / S3 equivalent.

The kit offers a choice of 355mm or 380mm fully-floating ‘triple-grove’ two-piece discs giving vastly greater heat capacity, so reducing the effect of fade.

MONOBLOCK

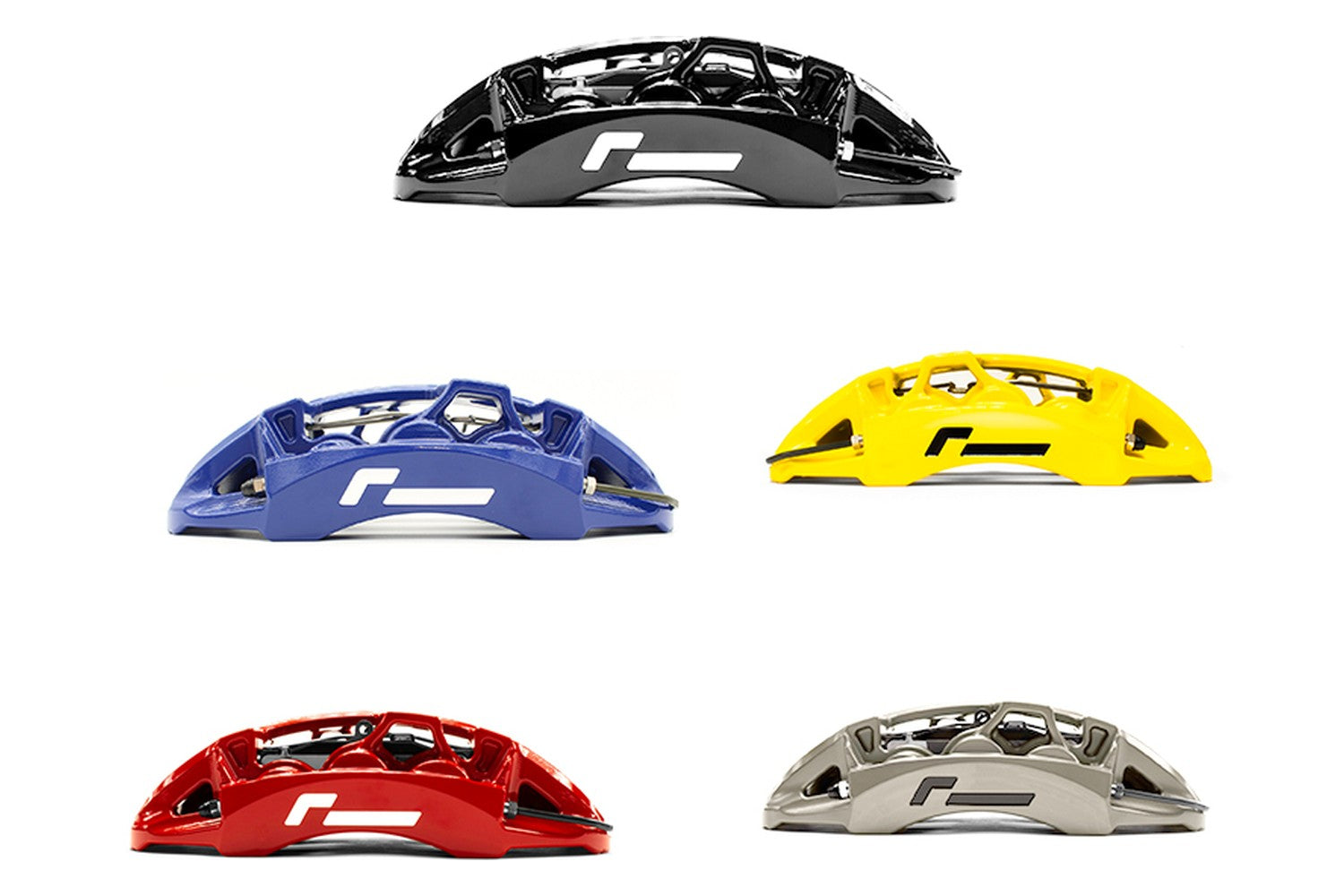

The ‘Forged Monoblock’ construction of our 6-piston aluminium thin-profile calipers give extreme stiffness and light weight, and aid in wheel clearance packaging.

FULLY-FLOATING
Fully floating mounting between disc and bell allow for thermal expansion and contraction to avoid cracking. The anti-rattle mounts keep it quiet.

DISC QUALITY
Two-piece floating high cast carbon discs – a mixture of high quality steel combined with carbon; giving a far higher friction coefficient compared to normal steel rotors. In either 355mm or 380mm diameter.

VWG-SPECIFIC
As our kit is engineered exclusively for VWG cars, we’ve developed piston sizes perfectly matched to master cylinders and servos for beautiful progressive pedal response.

PAD CHOICE
Composite Ceramic Sport Pads are included, with pad-wear sensors included. We use a generic pad size, meaning a wide choice of pad brands & compounds are available.

FULL INSTALL KIT
Everything you need for installation: discs, callipers, mounting brackets, fast road pads, braided steel lines. Plus the option of Hub Adaptors for extra wheel clearance. Bolt on & drive!

LOOSE WEIGHT

Saving unsprung weight is really important on a performance car. All those heavy masses on the ‘road-side’ of your springs – the wheels, tyres, suspension arms and of course brakes – make a massive difference to the car’s responses as it turns and handles bumps in the road, differences you can really feel as a driver.

So we’ve spend a lot of our development and design time making sure that this Forged Monoblock Brake Kit cuts as much weight out as possible. Our Monoblock Aluminium construction is the key to this saving – a single piece caliper is stronger, stiffer and can therefore be lighter than equivalent 2-piece calipers.

CONFIRMED APPLICATIONS

355mm VWR650002 RED/BLK/ANO/CHR

380mm VWR650003 RED/BLK/ANO/CHR

VW Golf 5 GTI 2005-2008

VW Golf 5 R32 2005-2008

VW Golf 5 GTI ED30/Pirelli 2006-2007

VW Golf 6 GTI 2009-2014

VW Golf 6 R 2009-2014

VW Scirocco R 2009-2017

Audi S3 8P 2006-2012

Audi A3 8P 2003-2012

Skoda Octavia II vRS 1Z 2004-2013
