RACINGLINE Wheel Spacers & Bolts [VWR640012]
RACINGLINE Wheel Spacers & Bolts [VWR640012]
RACINGLINE Wheel Spacers & Bolts [VWR640012]
RACINGLINE Wheel Spacers & Bolts [VWR640012]
RACINGLINE Wheel Spacers & Bolts [VWR640012]

RACINGLINE Wheel Spacers & Bolts [VWR640012]

$235.00

Hubcentric Wheel
Spacers.

for all VW Group MQB evo/MQB/A5-platform cars


Improve the aesthetics and dynamics of your VW, Audi, SEAT or Skoda with the RacingLine Hubcentric Wheel Spacers & Bolt Kits.



12.5mm  I  15mm  I  17.5mm  I  20mm



RACINGLINE WHEEL SPACERS FOR VW, AUDI, SEAT, SKODA MQB, MQB EVO 12.5mm, 15mm, 17.5mm, 20mm. VWR640xxx

What do
they do?

The RacingLine Hubcentric Wheel Spacers & Bolt Kits are one of the best and most affordable upgrades you can make to your VWG car. Once installed, the increased track width not only improves your car’s appearance, but also enhances driving dynamics with greater stability.


By physically moving the wheel further away from the hub, these spacers give your wheels the desired offset needed to create the stance or look you desire, flush with your wheelarches.


Fitment also provides the additional clearance necessary to fit over bigger brake calipers or coilovers.

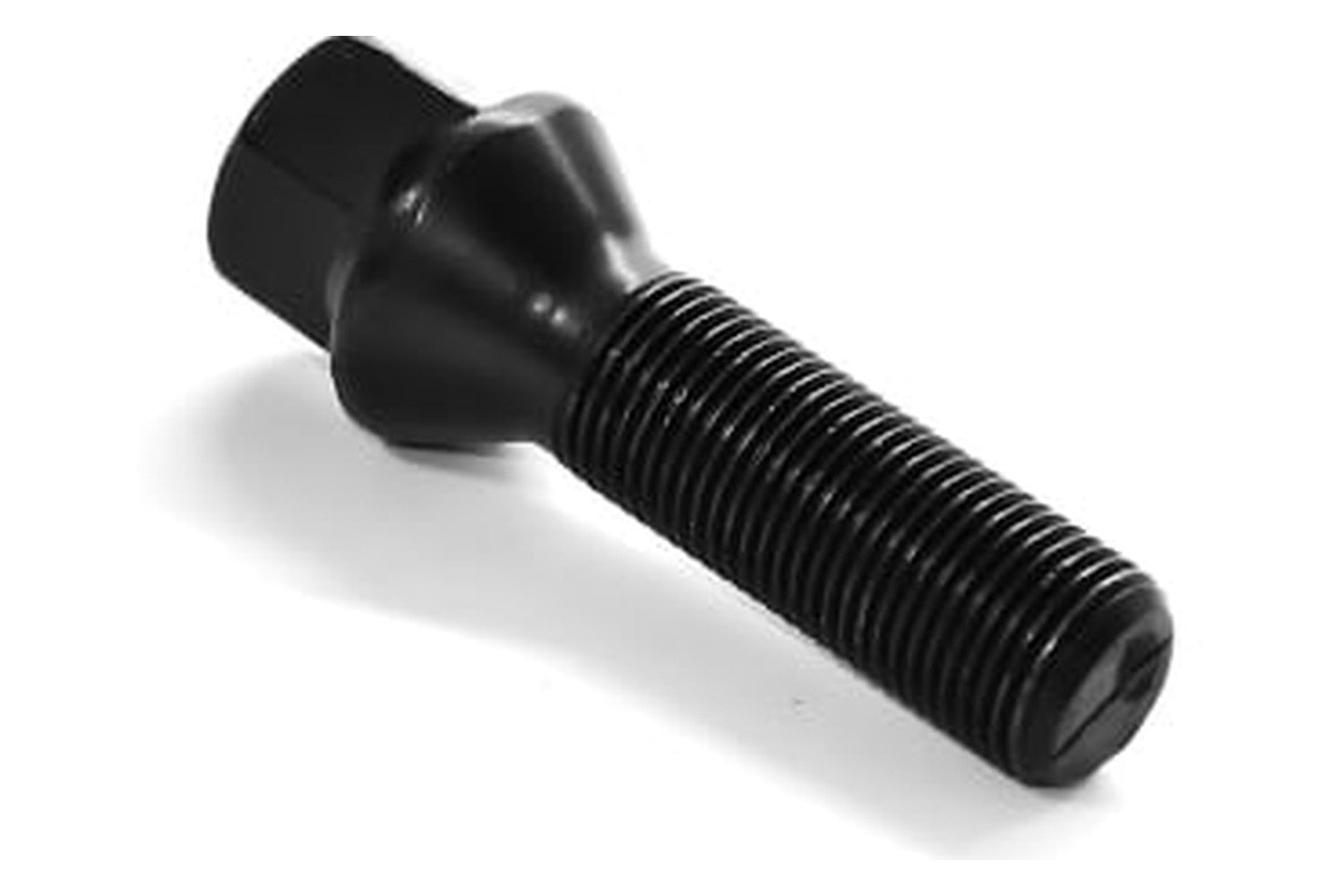

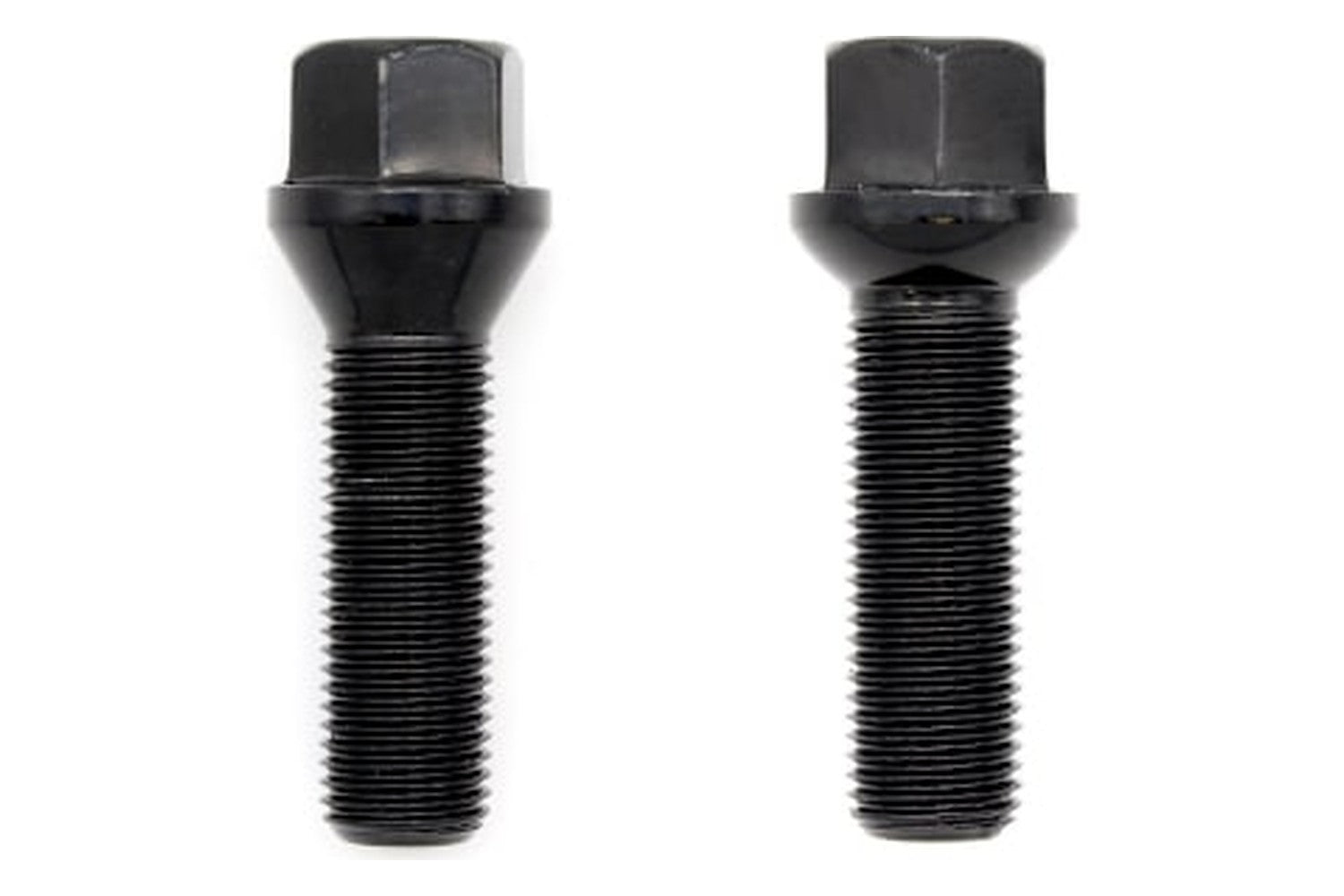

These Spacers are sold in pairs in your choice of 12.5mm, 15mm, 17.5mm or 20mm in width, including ten grade 12.9 Carbon Steel replacement black wheel bolts with each pair.


Whichever width you select, the RacingLine Spacers are a Hubcentric design, meaning that they are machined with an alloy spigot to make for perfect centering whilst maintaining the OE 57.1mm centre-bore for the correct fitment with factory or aftermarket wheels.






















Part numbers &
Specifications.

12.5mm Spacer:

Weight:    275g per spacer

Bolt Length:    37mm

Ball Seat bolts (OEM wheels):

VWR640012

Tapered Seat bolts:

VWR640112

17.5mm Spacer:

Weight:    390g per spacer

Bolt Length:    42mm

Ball Seat bolts (OEM wheels):

VWR640017

Tapered Seat bolts:

VWR640117

15mm Spacer:

Weight:    340g per spacer

Bolt Length:    39mm

Ball Seat bolts (OEM wheels):

VWR640015

Tapered Seat bolts:

VWR640115

20mm Spacer:

Weight:    440g per spacer

Bolt Length:    47mm

Ball Seat bolts (OEM wheels):

VWR640020

Tapered Seat bolts:

VWR640120

Cleaning
Note.

As with all anodised finishes, do not clean these spacers with aggressive acidic or alkaline cleaners otherwise the appearance of the finish will be damaged.



Use only pH balanced cleaners (ie, non-acid, non-alkaline, non-solvents). Never use ANY type of wheel cleaner or any chemicals including abrasive compounds on the spacer. We recommend washing with water and mild soap. We advise against using commercial carwashes who use aggressive chemicals such as TFR.



CONFIRMED APPLICATIONS

All MQB ‘evo’, MQB, A5-platform and the new MEB EV vehicles.

5×112 PCD  |  57.1mm CB

> VW Golf 8 2020+
> VW Golf 7 & 7.5 2013-2020
> VW Passat B8 2015+
> VW Arteon 2017+
> VW T-Roc 2017+
> VW Tiguan II 2016+
> VW Golf 5 2005-2008
> VW Golf 6 2008-2014
> VW Scirocco 2008-2017
> VW Jetta / GLI 5 2005-2011
> VW Jetta / GLI 6 2011-2018
> VW Jetta / GLI 7 2018+
> VW Touran 2018+
> VW ID.Buzz 2023+
> VW ID.4 2020+
> VW ID.3 2019+
> Audi S3 8Y 2020+
> Audi A3 8Y 2020+
> Audi S3 8V 2013-2020
> Audi A3 8V 2013-2020
> Audi RS3 2.5 TFSI 8Y 2021+
> Audi RS3 2.5 TFSI 8V 2015-2017
> Audi TT 3 8S 2014+
> Audi TTRS 2.5 TFSI 8S 2017+
> Audi SQ2 2018+
> Audi Q2 2017+
> Audi RSQ3 F3 2019+
> Audi S3 8P 2006-2012
> Audi A3 8P 2003-2012
> Audi TT II 8J 2006-2014
> Audi Q3 2019+
> Audi Q4 E-tron 20210+
> SEAT Leon IV FW 2020+
> SEAT Leon III 5F 2015-2020
> SEAT Leon II 1P 2005-2012
> Cupra Ateca 2018+
> Cupra Formentor 2020+
> SEAT Ateca 2016+
> Cupra Born 2021+
> Skoda Octavia IV NX 2020+
> Skoda Octavia III 5E 2014-2020
> Skoda Octavia II 1Z 2004-2013
> Skoda Superb III 3V 2015+
> Skoda Karoq 2017+
> Skoda Kodiaq 2018+
> Skoda Enyaq 2021+

Some of the products we sell are intended for race use only. We recommend these products are only used in compliance with the relevant laws and regulations.
It is the responsibility of customer or installing workshop to verify whether the products are suitable for road use in their specific state.
Harding Performance accepts no responsibility or liability for products used on public roads that do not comply with state or federal laws.
By making a purchase, the customer acknowledges and accepts these terms.
