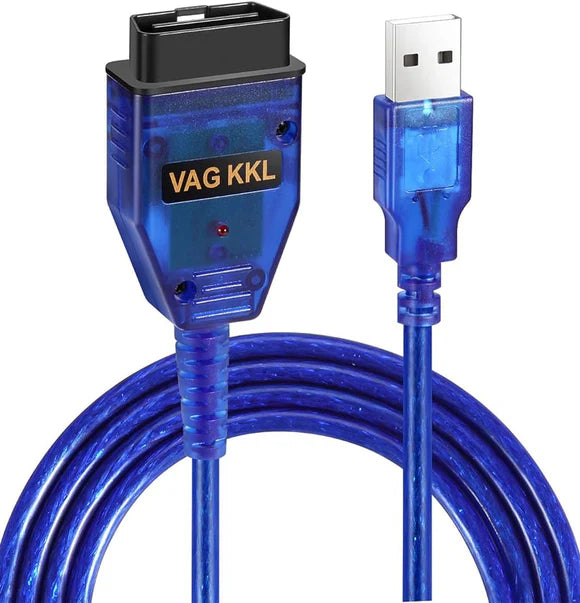

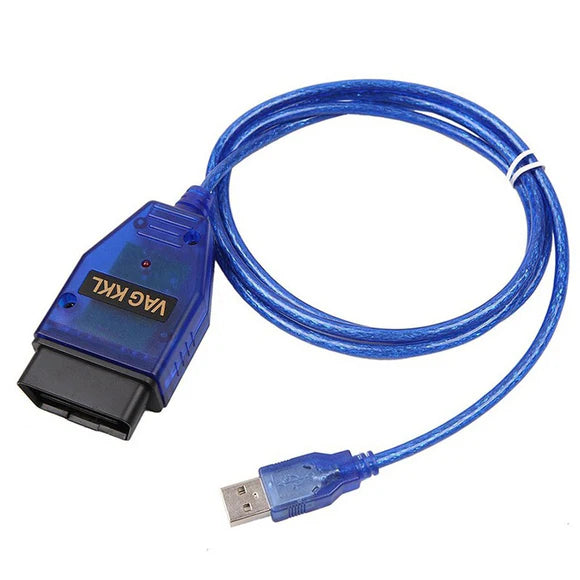

MODE VAG COM VCDS OBDII Cable K-Line Interface Tuning, Diagnostics & Coding for VW Audi Skoda Cupra Seat

MODE VAG COM VCDS OBDII Cable K-Line Interface Tuning, Diagnostics & Coding for VW Audi Skoda Cupra Seat

Tune or Code your VW, Audi, Skoda, Cupra, Seat 1995-2005 with our MODE premium quality shielded cable suitable for VAG-COM cable is a high-quality interface that works with the VCDS software for VW, Audi, Seat and Skoda vehicles from 1995 – 2005 (Newer models see here). The software will allow you to find & clear faults, view vehicle data and become a full diagnostic tool if you have the correct level. The free/lite version only gives you limited options, listed below. It has the 16 Pin OBD2 style plug.

Easily Switch between old and new models for broader applications.

NOTE: NOT Compatible with CAN-BUS vehicles (these are usually 2008+ VW/Audi group vehicles or can be earlier) If you have a newer 2005+ VW Audi, check out this tool here.

• Suitable for VCDS Lite Software
• Fit for Australian VW, Audi, Seat and Skoda
• Entirely ideal for most 1995 – 2005 VAG vehicles
• Quality FTDI FT232RL chip, not a cheap clone
• Support all the diagnostic communication protocols needed
• Read & Clear DTC trouble codes, Read Control Modules, Code Modules, Adaptions
• Dual K-line Support
• 12-month Warranty

Software link here: https://www.ross-tech.com/vcds-lite/download/

Drivers: https://ftdichip.com/wp-content/uploads/2021/08/CDM212364_Setup.zip

Plug in your VAG Come cable and install the VCDS and you will be away to diagnose your Audi, VW or Skoda.

Functions Available for VCDS-Lite 1.2 (unregistered free version):
– Control Unit Info
– Read Diagnostic Trouble Codes*
– Clear Diagnostic Trouble Codes
– Close Controller
– Code Module
– Measuring Blocks (read various Control Module data in real-time)
– Data Logging*
– Single Readings
– Adaptations*
– Logins
– View Readiness
– Dual K-line Support
– Control Module Finder

*Limitations of Free Version:
– VCDS-Lite will display all diagnostic trouble code numbers but may not provide information for all diagnostic
  trouble codes
– Freeze frame is not available
– Adaptations of the first 9 Adaptation Channels available
– Adaptations Save Function and Help Charts are not available
– Data logging of groups 001-025 only

Important: If you have a 2003+ newer model, check to see if your car has a CAN connection.

Some of the compatible vehicles include:

Volkswagen:
– 1993-1999 Golf/GTI/Jetta (A3)
– 1999.5-2005 Golf/GTI/Jetta (A4)(non CAN)
– 1998-2010 Beetle (A4) (Note: CAN is required for generic OBDII diagnostics)
– 1995-2003 Cabrio (A3)(non CAN)
– 1995-1997 Passat (B4)
– 1998-2005 Passat (B5/B5.5)(non CAN)
– Touareg (7LA older pre-facelift model only)
– Phaeton (3D2/3D8 older pre-facelift model only)
– 1996-2004 Transporter / Eurovan / Winnebago Rialta (non CAN)
– 1990-1992 Corrado G60 (A2)
– 1992-1995 Corrado SLC (A2)

Important: If you have a 2003+ newer model, check to see if your car has a CAN connection.

Audi:
– 2000-2006 TT Coupe/Roadster (A4) (non CAN)
– 1996-2001.5 A4 and 2000-2002 S4/RS4 (B5) (non CAN)
– 2002-2005 A4 , 2004 S4 , 2004-2005 A4/S4 Cabriolet (B6)
– 1992-1997 100 / A6 and 1992-1995 S4 / S6 (C4)
– 1998-2004 A6 / S6 / RS6 (C5) (non CAN)
– 1990-1994 200/V8 (D1)
– 1997-2003 A8 and 2001-2003 S8 (D2) (non CAN)

Important: If you have a 2003+ newer model, check to see if your car has a CAN connection.
